Stainless Steel 304/316L Cartridge Filter Housing with 0.2 μm Filtration Precision Vertical Design and Customized Size

Name: Stainless Steel 304316L Cartridge Filter Housing with 02 μm Filtration Precision Vertical Design and Customized Size
Brand: yate
Price: 300 USD

Wholesale Stainless Steel 304/316L Cartridge Filter Housing with 0.2 μm Filtration Precision Vertical Design and Customized Size from china suppliers

Place of Origin : Shandong, China

Brand Name : yate

MOQ : 1

Price : $300-460

Weight : 40 kg

Material : Stainless Steel 304/316L

Design : Vertical type

Working Pressure : 0.6Mpa

Filter Element Material : PP/PE

Min Filtration Precision : 0.2 μm

In/Out Caliber : DN25-80 flange or Tri-Clamp

Design Pressure : 0.6MPa, 1.0MPa

Filter Specifications : 1 core, 3 core, 5 core, 7 core, 9 core, 11 core, 13 core and more

Surface Treatment : Polishing treatment

Sealing Ring Material : Silicone, EPDM, Fluorine, PTFE fluorine rubber

Filter Elements : PP folding filter, PTFE folding filter, PES folding filter, titanium rod filter, metal sintered filter

Max Flow : 0.5-10.5 m3/h (varies by model)

Connection : Tri-Clamp

Diameter : 102-273 mm (varies by model)

Contact Now

Stainless Steel 304/316L Cartridge Filter Housing with 0.2 μm Filtration Precision Vertical Design and Customized Size

Food and beverage:wine，beer ，vodka，juice, soda filtration; Syrup, additive filtration; Oil filter

Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration
Electronic industry: coolant filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products
Petrochemical industry: aviation kerosene filtration; Oil and fuel filtration

Products Description

Cartridge filter housing

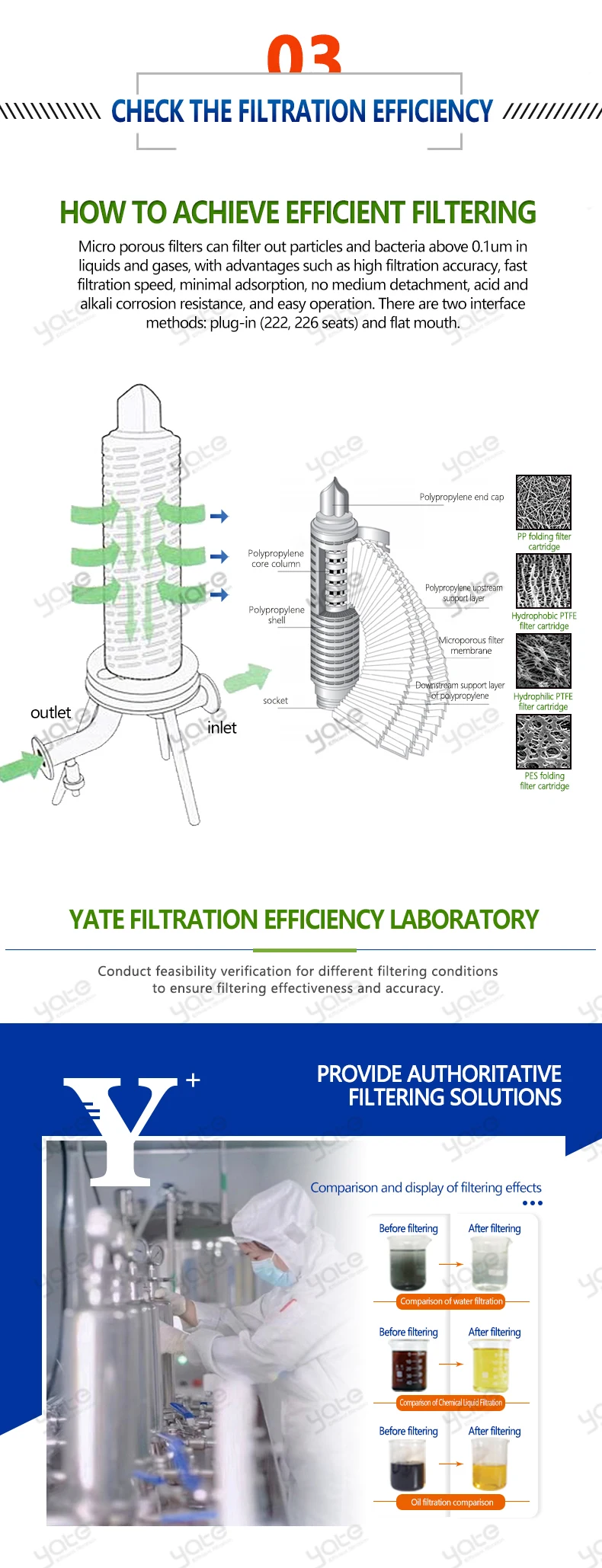

Precision filter can filter particles and bacteria above 0.1um of liquid and gas, with high filtration accuracy, fast filtration speed, less adsorption, no media shedding, acid and alkali corrosion resistance, easy operation and other advantages. The length is 10; 20; There are four types of 30 and 40 inches, and the interface modes are plug-in (222, 226 seats) and two types.

1. Equipment material :SS304, 5S316L, lined with PTFE. 2. In and out caliber :DN25-80 flange or Tri-Clamp. 3. Design pressure :0.6MPa, 1.0MPa. 4. Filter specifications: 1 core, 3 core, 5 core, 7 core, 9 core, 11 core, 13 core and more. 5. Surface treatment: polishing treatment. 6. Sealing ring material: silicone, EPDM , fluorine , PTFE fluorine rubber. 7. Filter elements :PP folding filter, PTFE folding filter, PES folding filter, titanium rod filter, metal sintered filter, etc

Model	Diameter（mm）	Connection	Max.Flow (m3/h)	Working Pressure(MPa)
YT-1X10C	102	Ø25 Tri-Clamp	0.5	0.6
YT-1X20C	102	Ø25 Tri-Clamp	1	0.6
YT-1X30C	102	Ø25 Tri-Clamp	1.5	0.6
YT-3X10C	204	Ø38 Tri-Clamp	1.5	0.6
YT-3X20C	204	Ø38 Tri-Clamp	3	0.6
YT-3X30C	204	Ø38 Tri-Clamp	4.5	0.6
YT-5X10C	219	Ø38 Tri-Clamp	2.5	0.6
YT-5X20C	219	Ø38 Tri-Clamp	5	0.6
YT-5X30C	219	Ø38 Tri-Clamp	7.5	0.6
YT-7X10C	273	Ø45 Tri-Clamp	3.5	0.6
YT-7X20C	273	Ø45 Tri-Clamp	7	0.6
YT-7X30C	273	Ø45 Tri-Clamp	10.5	0.6

Advantages

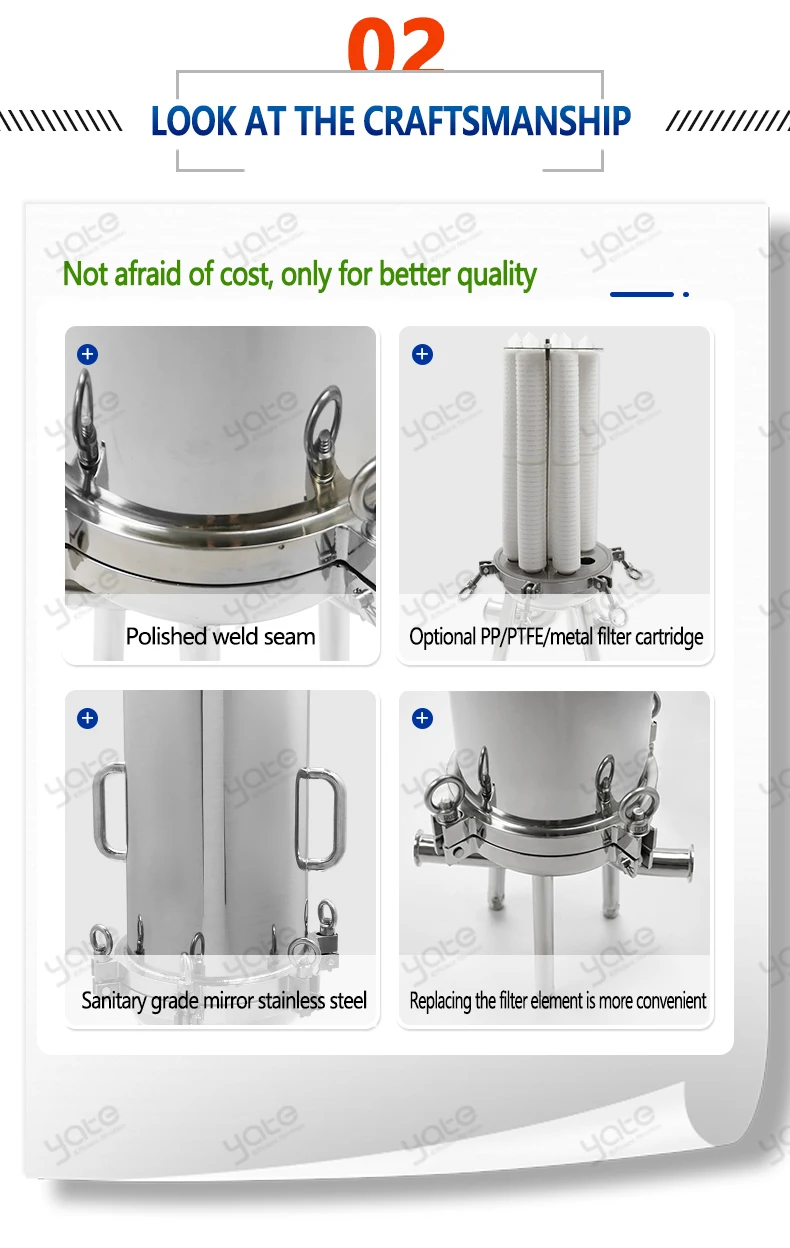

1. Choose high-quality materials 2. Superb welding technology, strong sealing 3. Efficient filtration effect 4. Provide complete filtration solutions 5. Global real case feedback 6. Factory processing equipment and inspection equipment are complete.
